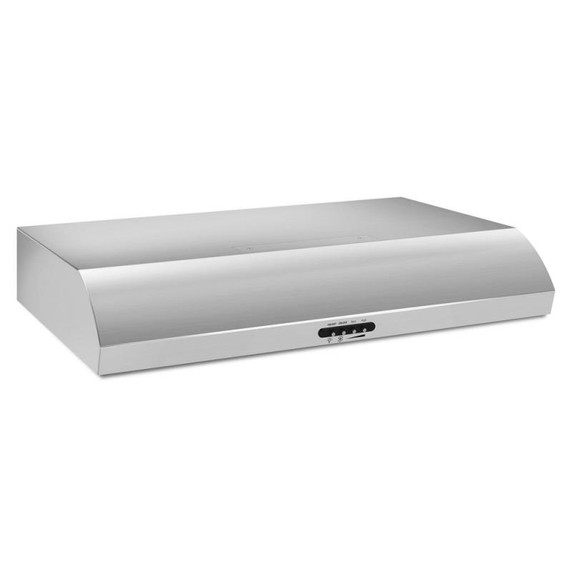

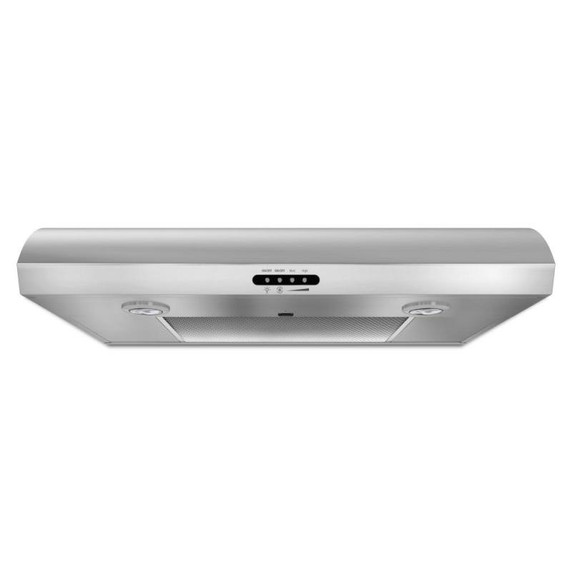

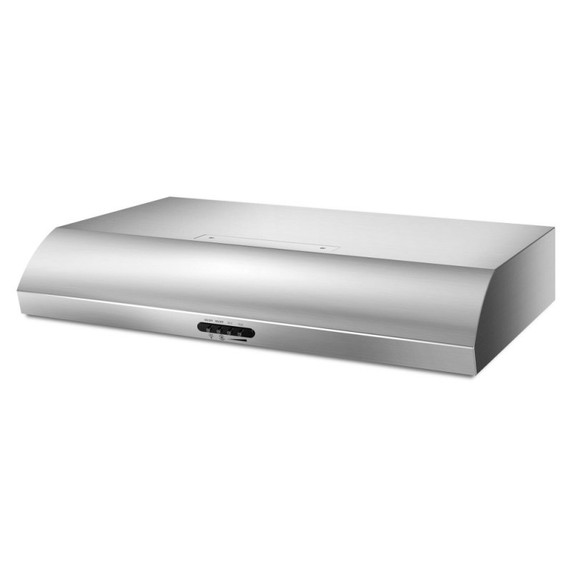

30" Range Hood with the FIT System UXT5230BDS
Grease filterThe grease filter helps trap unwanted grease and helps remove odors.
FIT SystemThe FIT system eliminates measuring, cutting and trim for a perfect fit every time.
Hidden VentHidden Vent
Halogen LightingHalogen task lighting makes it easy to see what you’re cooking with bulbs that make food look as appealing as it tastes.
7" Round Damper7" Round Damper
3-1/4" x 10" Damper3-1/4" x 10" Damper
Recirculation (Non-Vented/Duct-Free)By not having to connect to outside air, this hood can be installed almost anywhere, including a condo. Recirculation happens through filters to help keep the air fresh.
Flexible ventilation optionsA convertible design lets you install almost anywhere. When external ventilation isn’t an option, the hood’s fan will recirculate air through filters that capture grease and cooking odors to help keep the kitchen clean.
Certifications
ULYes
Description
Size In30
Hood TypeUnder-the-Cabinet
Specifications
Country Of OriginMexico
Optional AccessoriesW10356918
Extended Service Plan ParentEW02IW2Y, EW02IW4Y, EW02IW1Y
Product To Product PairsWCI55US0JB, WCE77US0HB, WCE55US0HB, WCI55US0JS, YWFC315S0JW, YWEE745H0LZ, WCE55US0HS, YWEE515S0LB, YWFC315S0JS, YWEE515S0LV, YMET8800FZ, MEC8830HS, YWFE745H0FH, YWGE745C0FS, YWFC150M0JW, YWEE515S0LW, YWFC150M0JB, WCE77US0HS, MGT8800FZ, YWEE750H0HZ, YWEE750H0HV, YWFE745H0FS, MEC8830HB, YWEE750H0HB, YWEE515S0LS, YWEEA25H0HZ, MGC7430DS, WCE97US0KS, WEG515S0LS, YWEE750H0HW, WEG515S0LV, YWFE515S0JS, WCE97US0KB
Ventilation System
VentingExterior or Recirculating
Duct Outlet Size In3.25 W x 10 H
Duct DirectionVertical or Horizontal
FiltersCharcoal Odor Removing Filter
Cfm Motor Class560
Sound Max Speed Sones7.5
Features
Task LightingYes
Task Light TypeHalogen
Btu Threshold50 K
Controls
Control TypeManual
Carton Depth20.75"
Carton Height7.0"
Carton Width31.75"

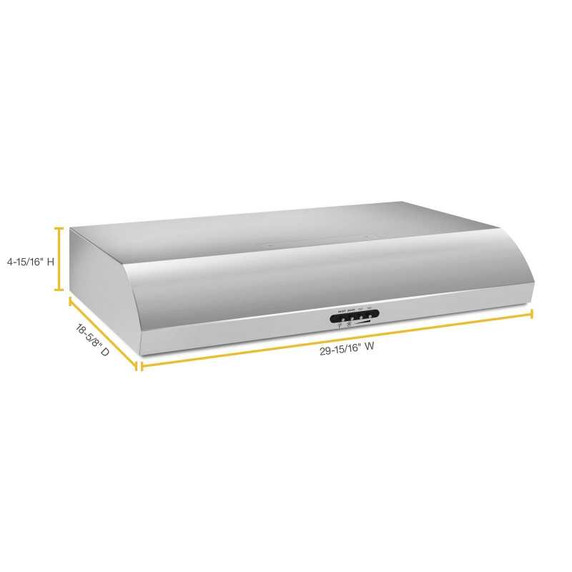

Depth18.63"
Gross Weight17.0 lbs.
Height4.94"
Width29.94"
