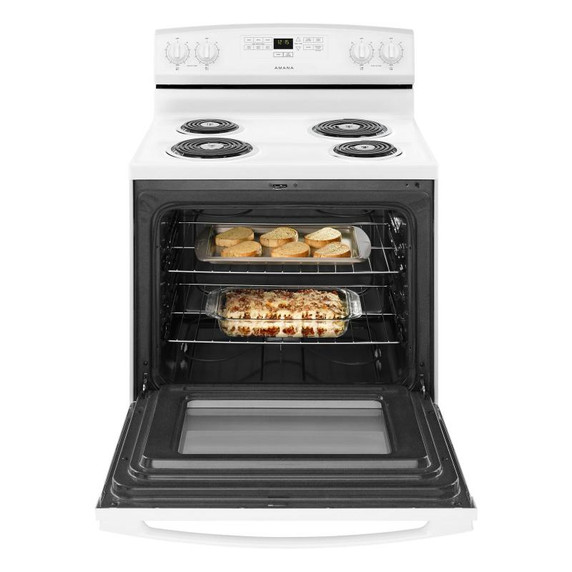

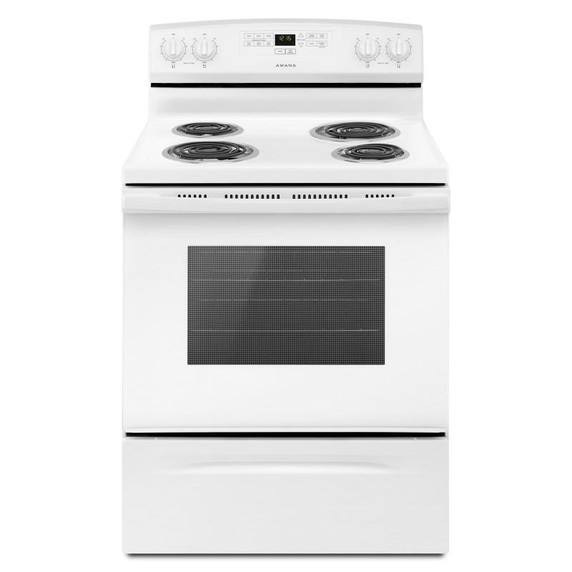

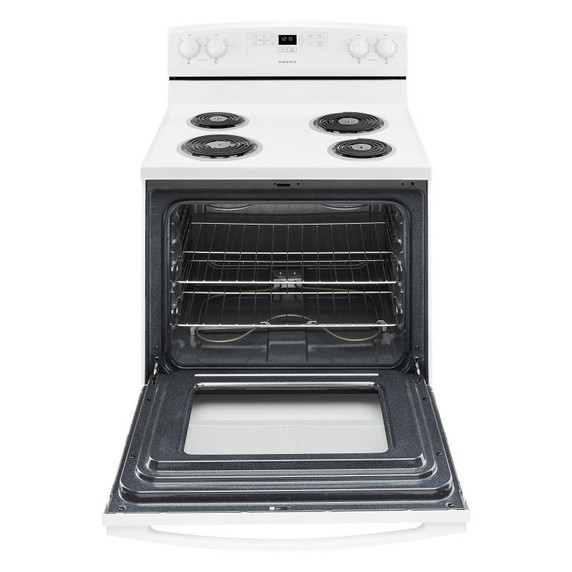

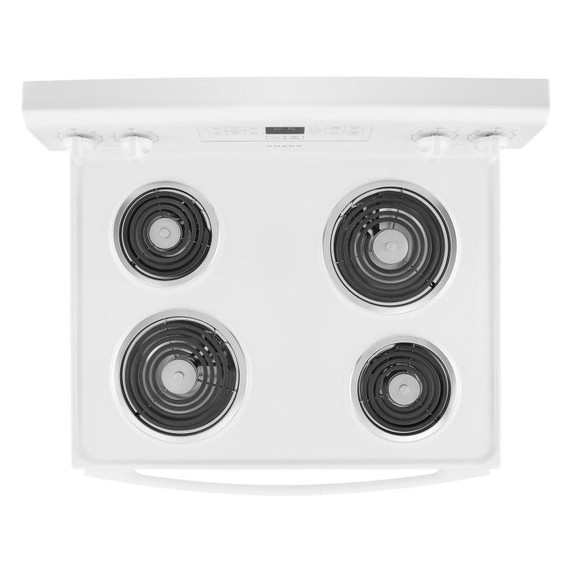

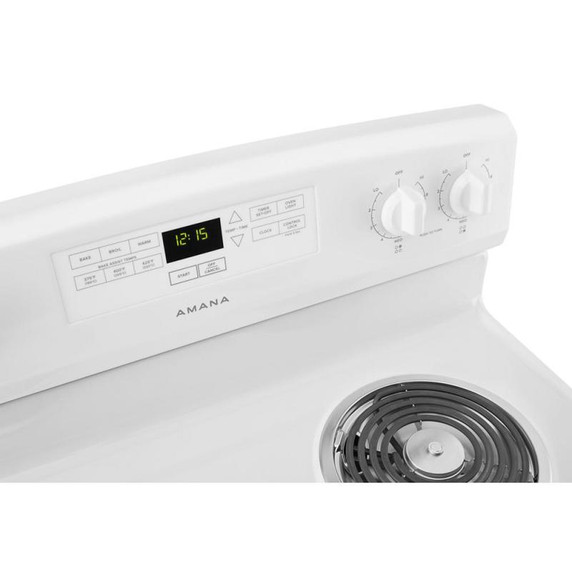

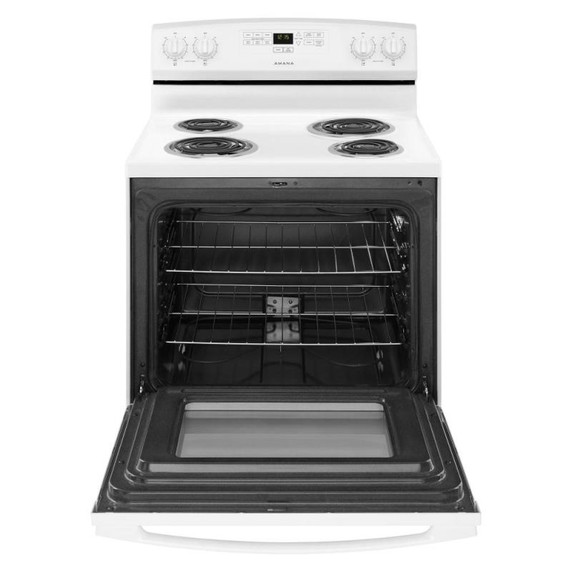

30-inch Amana® Electric Range with Bake Assist Temps YACR4303MFW
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Product To Product Pairs
Extended Service Plan ParentEW03IW4Y, EW03IW1Y, EW03IW2Y
Electrical
Volts120
Power Cord IncludedYes
Amps40
Certifications
ULYes
ADA CompliantNo
CULYes
Energy Rating Kwh Year524
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Automatic Convection Conversion Temperature AdjustNo
LP ConvertibleNo
Natural Gas ConvertibleNo
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Cooktop Details
Cooktop Control TypeKnobs
Left Rear Element Burner Size6in.
Number Of Cooking Element Burners4
Cooktop Control LocationBackguard
Left Front Element Burner Size8in.
Right Front Element Burner Size6in.
Right Rear Element Burner Size8in.
Cooktop Surface ColorStainless Steel
Cooktop Element StyleCoil
Left Rear Element Burner Power1300W
Left Front Element Burner Power2150W
Left Front Element Burner TypeStandard Coil
Left Rear Element Burner TypeStandard Coil
Right Front Element Burner Power1300W
Right Front Element Burner TypeStandard Coil
Right Rear Element Burner Power2150W
Right Rear Element Burner TypeStandard Coil
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Hidden Bake ElementNo
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Control LocationRear Control
Convection Element TypeNone
Oven Cleaning TypeManual Clean
Convection FunctionsNo
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Handle MaterialPlastic
Handle ColorWhite
Handle TypeReach-Through Handle
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Range TypeFreestanding
Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack Stainless
Energy
Annual Energy Usage Kwh524
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth Closed Excluding Handles25.31"
Depth With Door Open 90 Degree46.69"
Depth27.75"
Gross Weight187.0 lbs.
Height46.88"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)4.8
