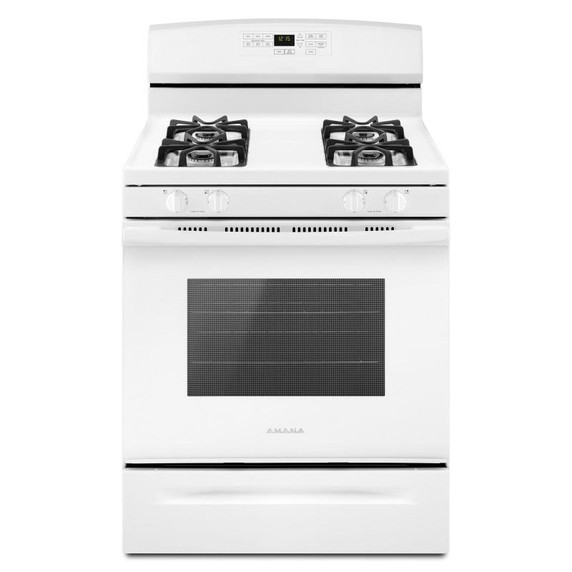

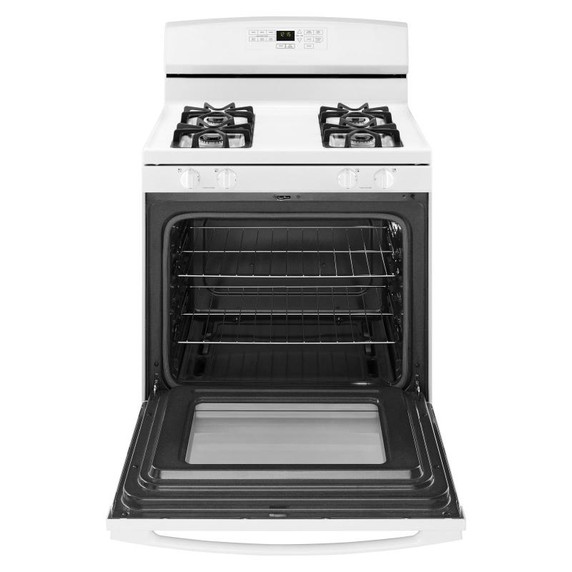

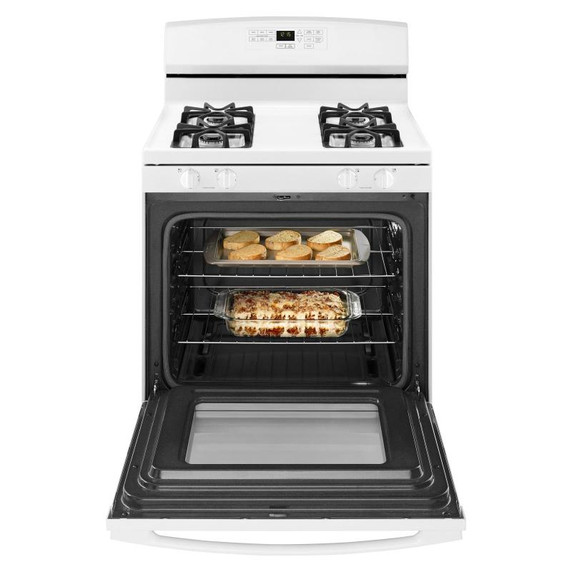

Amana® 30-inch Gas Range with Self-Clean Option AGR6603SFW
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Optional Accessories4396096RB
Extended Service Plan ParentEW05IW2Y, EW05IW4Y, EW05IW1Y
Product To Product PairsART104TFDW, AZF33X18DW, AZF33X16DW, ABB1924BRW, ART318FFDW
Electrical
Volts120
Amps15
Power Cord IncludedYes
Certifications
ULYes
ADA CompliantNo

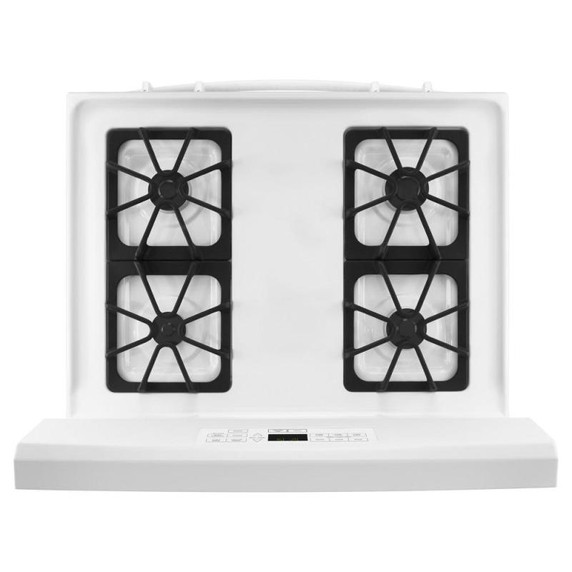

Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Front Element Burner TypeSealed Burner
Left Front Element Burner TypeHigh Output
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power9500BTU
Cooktop Surface ColorStainless Steel
Left Front Element Burner Power12500BTU
Right Front Element Burner Power9500BTU
Grate DetailsDishwasher Safe; Matte Finish; Porcelain Coated Cast Grates
Number Of Grates4
Ignition TypeÉlectroniques
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
GriddleN/A
Heating Element On Indicator LightNo
Power Outage CompatibleYes - Cooktop Only
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent

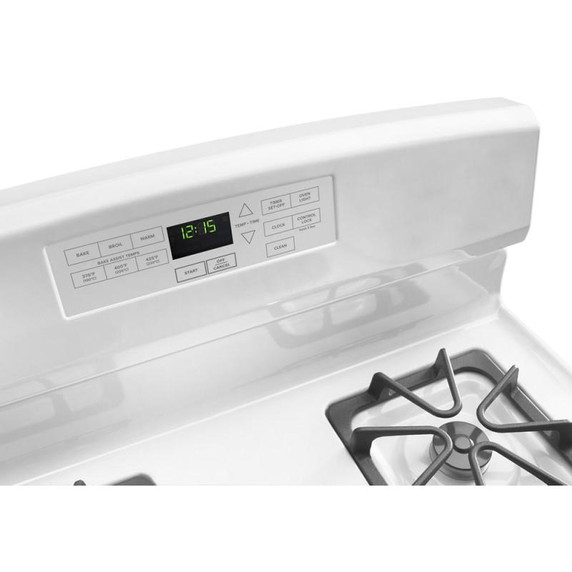

Oven Control TypeElectronic Touch
Oven Control LocationRear Control
Bake Element Power16500BTU
Broiler Element Power10000BTU
Convection Element TypeNone
Oven Rack TypeStandard
Convection FunctionsNo
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Handle MaterialPlastic
Handle ColorWhite
Handle TypeReach-Through Handle
Description
Size In30
Range TypeFreestanding
Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack Stainless
Configuration and Overview
Fuel TypeGas
Carton Depth29.0"
Carton Height48.75"
Carton Width32.0"
Depth Closed Excluding Handles25.44"
Depth With Door Open 90 Degree46.56"
Depth27.88"
Gross Weight179.0 lbs.
Height46.88"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)5.0
