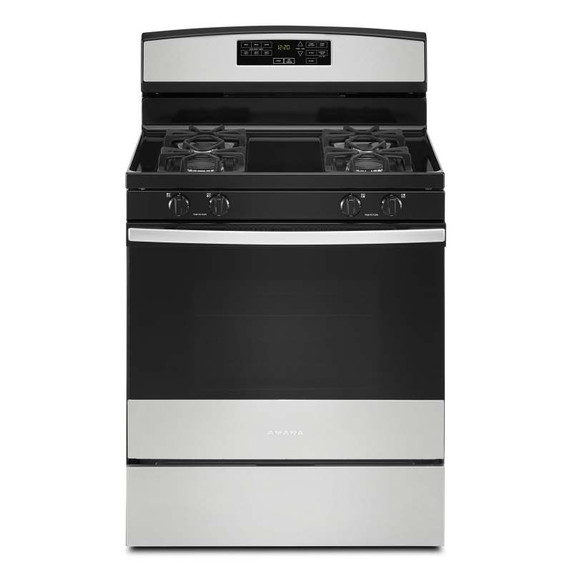

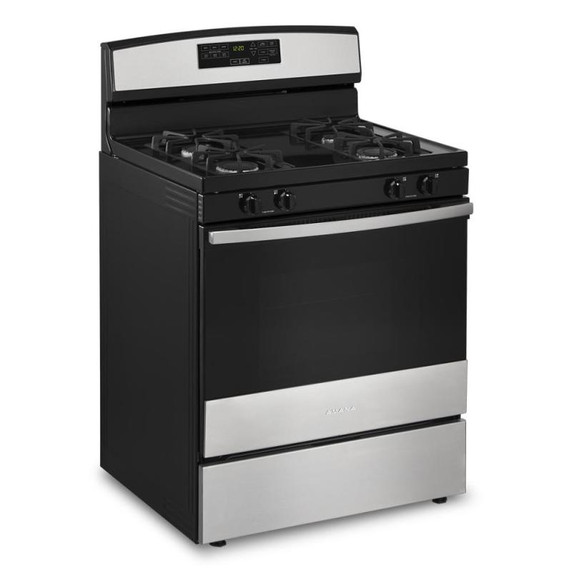

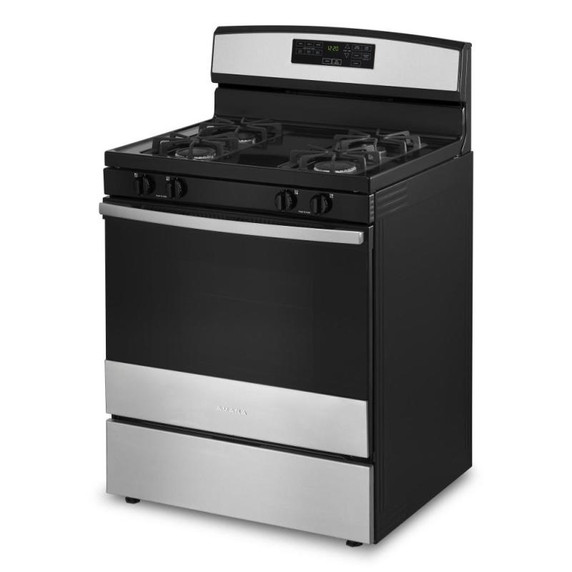

Amana® 30-inch Gas Range with Self-Clean Option AGR6603SMS
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishSatin Finish
Extended Service Plan Parent
Product To Product Pairs
Optional Accessories4396096RB, W10252111
Cast Iron Vs PorecelainDishwasher Safe; Flower Wire; Gloss Finish; Wire Grates
Certifications
ULYes
ADA CompliantNo

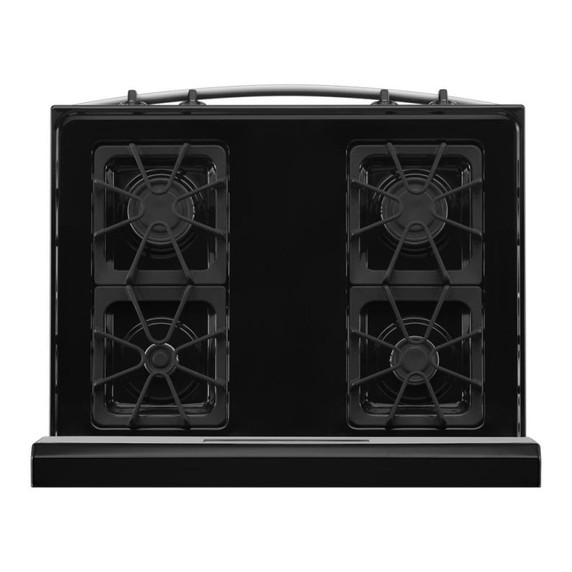

Cooktop Details

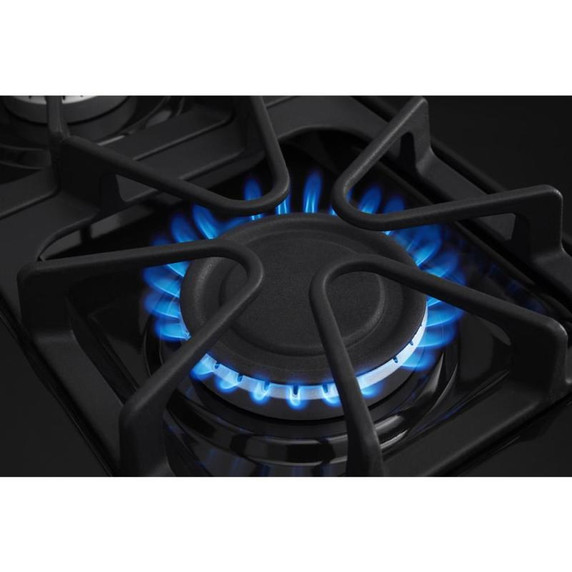

Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner TypeStandard
Left Front Element Burner TypeStandard
Right Front Element Burner TypeStandard
Auto Re IgnitionNo
Number Of Grates2
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power9500BTU
Right Front Element Burner Power9500BTU
Left Front Element Burner Power11500BTU
Ignition TypeÉlectroniques
Grate DetailsDishwasher Safe; Flower Wire; Gloss Finish; Wire Grates
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Natural Gas ConvertibleYes
GriddleN/A
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Total Gas Btus Oven S16,500
Total Gas Btus Cooktop54,500
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Oven Interior Depth In Inches19.0
Oven Interior Width In Inches25.0
Number Of Rack Guides5
Number Of Oven Lights1
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)

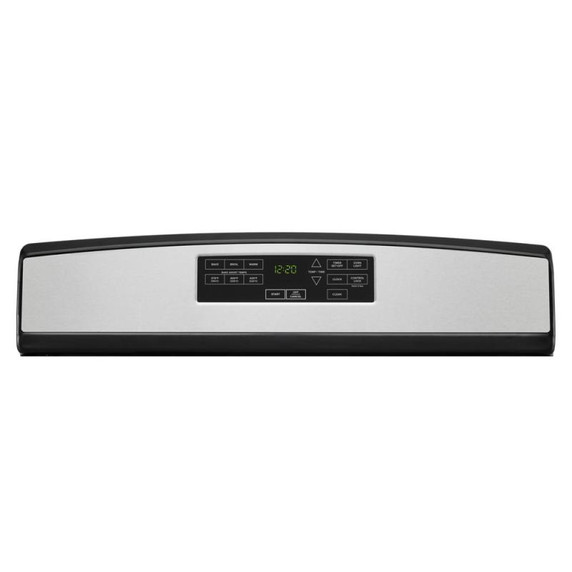

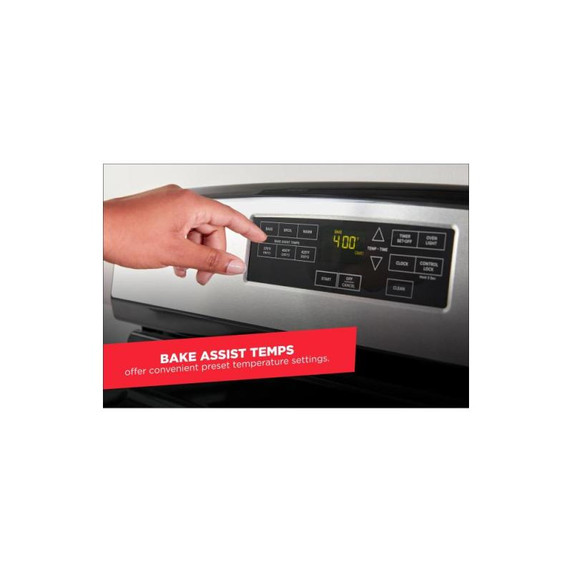

Oven Control TypeElectronic Touch
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Bake Element Power16500BTU
Oven Control Knob ColorBlack
Broiler Element Power16500BTU
Convection FunctionsNo
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Handle MaterialPlastic
Handle ColorBlack
Handle TypeReach-Through Handle
Description
Size In30
Range TypeFreestanding
Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack
Configuration and Overview
Fuel TypeGas
Compatibility
Works With
Carton Depth30.0"
Carton Height49.0"
Carton Width32.0"
Depth Closed Excluding Handles22.9"
Depth Closed Including Handles25.55"
Depth With Door Open 90 Degree45.78"
Depth27.2"
Gross Weight179.0 lbs.
Height46.25"
Maximum Height37.0"
Minimum Height36.0"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.13"

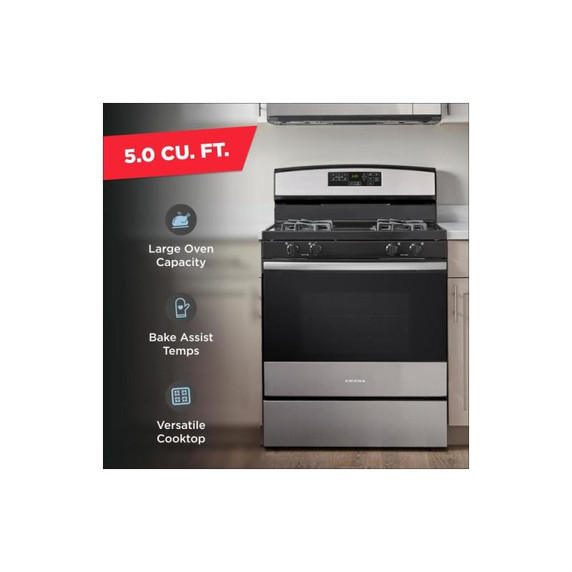

Capacity FT3 (cubic feet)5.0
