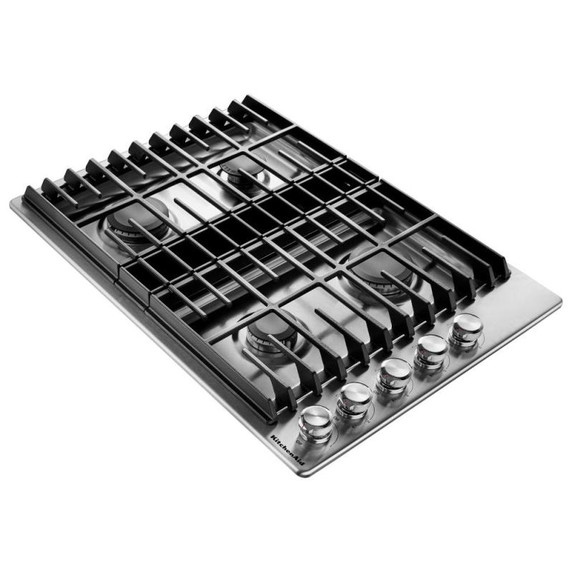

Kitchenaid® 30" 4 Burner Gas Downdraft Cooktop KCGD500GSS
Specifications
Country Of OriginUSA
Optional AccessoriesW10177003, W10620783
Product To Product Pairs
Extended Service Plan ParentEW08IW2Y, EW08IW4Y, EW08IW1Y
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Certifications
ULYes
ADA CompliantNo
Cooktop Details
Cooktop Element StyleSealed Burners
Number Of Cooking Element Burners4
Left Front Element Burner TypeSealed Burner
Right Front Element Burner Power10000BTU
Right Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Left Rear Element Burner Power5000BTU
Left Front Element Burner Power17000BTU
Left Rear Element Burner TypeEven-Heat™
Right Rear Element Burner Power15000BTU
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Automatic Pan DetectionNo
Digital DisplayNo
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Downdraft VentYes
Installs Over Built In OvenNo
Description
Size In30
Cooktop TypeDowndraft
Controls
Control TypeManual
Knob TypeMetal
Control LocationSide
Configuration and Overview
Fuel TypeGas
Ventilation System
Cfm Motor Class300
Refinements
Kad CooktopDowndraft Ventilation; Even-Heat Melt Burner

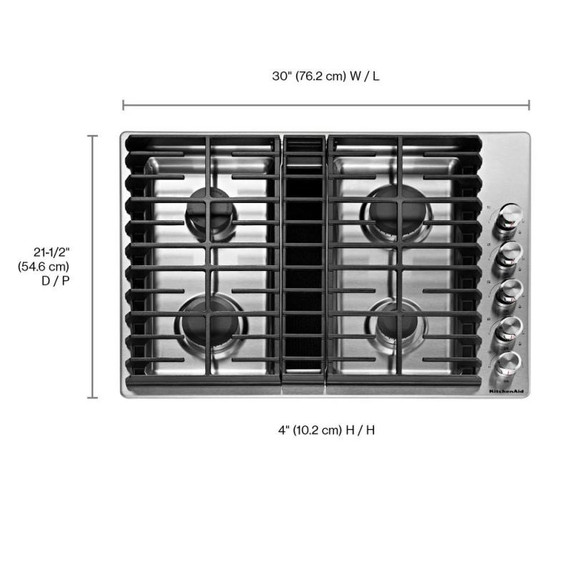

Depth21.5"
Height18.44"
Net Weight66.0 lbs.
Width30.0"
Cutout Depth19.94"
Cutout Width28.63"
Carton Depth Inch26.38
Carton Height Inch23.78
Carton Width Inch35.12
