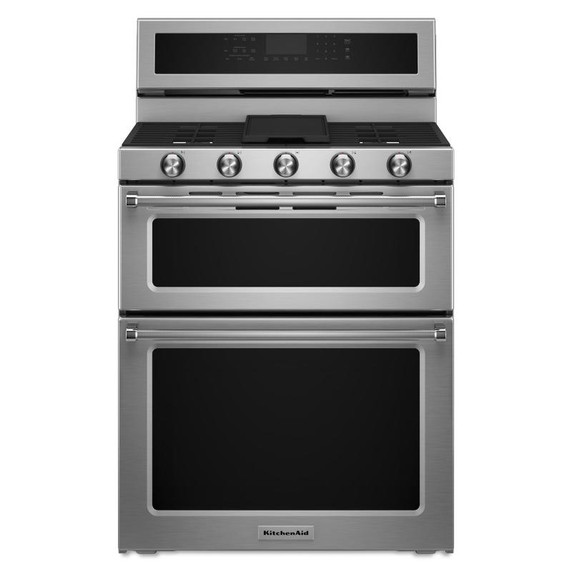

Kitchenaid® 30-Inch 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS
KitchenAid
Kitchenaid® 30-Inch 5 Burner Dual Fuel Double Oven Convection Range KFDD500ESS
Steam RackOffers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
Professionally-Inspired Designcombines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.
Even-Heat™ True ConvectionProduces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.

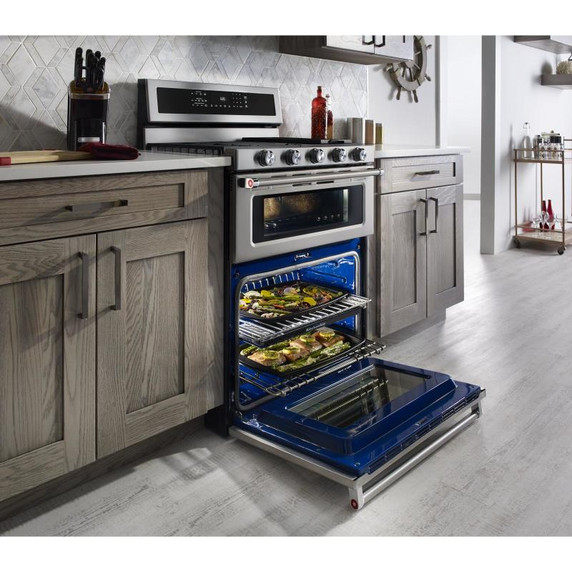

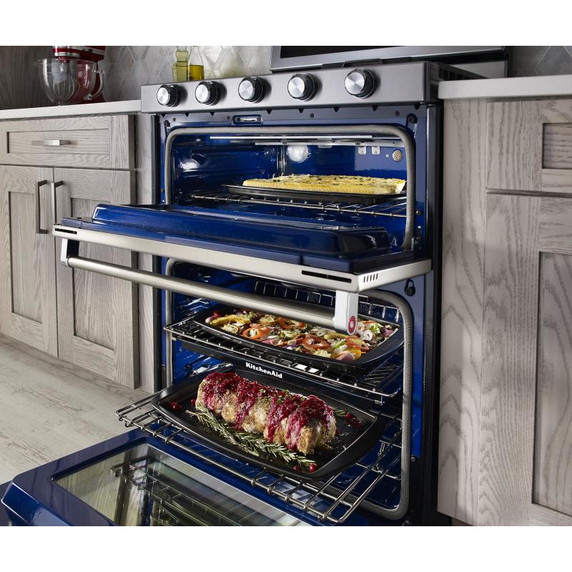

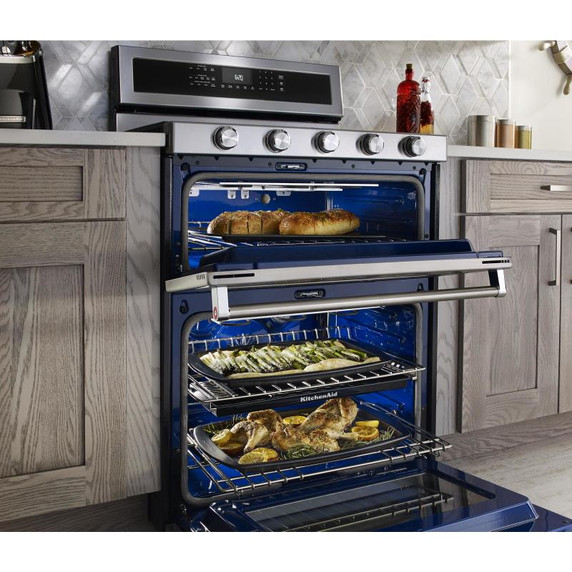

6.7 cu Ft. Total CapacityProvides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.

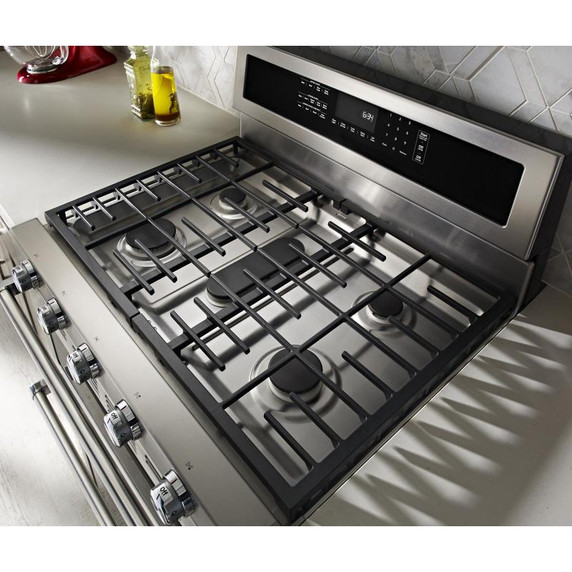

5 Burners (17k, 10k, 7.3k, 5k, 5k)Provides the perfect range of cooking power from 5,000 to16,000 BTU, so you can go from a rolling boil to a delicate simmer.
EasyConvect™ Conversion SystemTakes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.

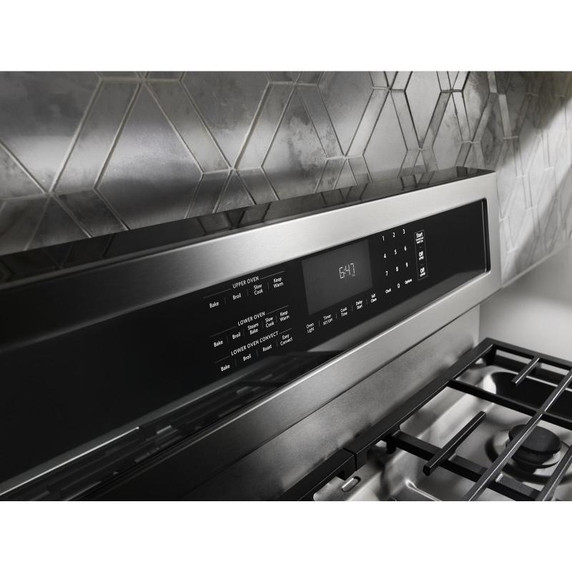

Glass-Touch ControlsOffer an intuitive, easy-to-use touch screen experience.

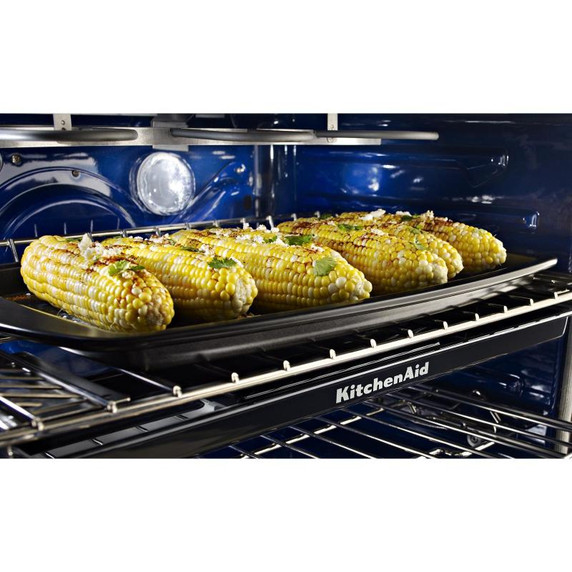

SatinGlide® RackMove smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Controls
Knob TypeWeighted
Knob ColorStainless Steel
Electronic Display TypeDigital
Electrical
Power Cord IncludedYes
Volts240
Amps40
Configuration and Overview
Fuel TypeDual Fuel
Energy
Annual Energy Usage Kwh306
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainCast Iron Grates
Optional AccessoriesW10432544
Extended Service Plan ParentEW09IW1Y, EW09IW4Y, EW09IW2Y
Product To Product PairsKVUB600DSS, KVWB400DSS, UVL5430JSS, KVWB600HBS, KVWB600DSS, KVUB400GSS
Features
Hot Surface Indicator LightNo
Automatic Convection Conversion Temperature AdjustYes
Power Outage CompatibleNo
Heating Element On Indicator LightNo
Refinements
Kad RangeEasyConvect™ Conversion; Even-Heat™ True Convection; SatinGlide™ Racks; Steam Rack
Certifications
ULYes
Energy Rating Kwh Year306
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Configuration
Range ConfigurationFreestanding

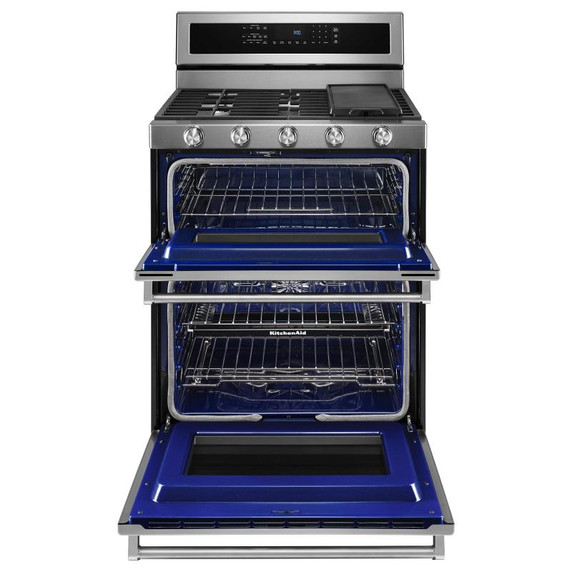

Oven ConfigurationDouble Oven
Description
Size In30
Range TypeFreestanding Double Oven
Details
Broiler LocationTop of Oven
Convection FunctionsBake; Broil; Roast
Hidden Bake ElementYes
Number Of Oven Lights1
Oven Light TypeIncandescent
Bake Element Power2000WBoth
Broiler Element Power3600WBoth
Convection Element TypeFan
Interior ColorBlue
Number Of Oven Racks1 Upper-2 Lower
Number Of Rack Guides2 Upper-5 Lower
Oven Control TypeElectronic Touch
Oven Cooking SystemThermal Upper-Convection Lower
Oven Rack Type1 Gliding Roll-Out, 2 Heavy Duty
Oven Control LocationRear Control
Cooktop Surface MaterialStainless Steel
Convection Element Power Watts1600
Oven Cleaning TypeAquaLift® Self-Clean
Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Left Front Element Burner TypeSealed Burner
Number Of Cooking Element Burners5
Right Front Element Burner Power10000BTU
Right Rear Element Burner TypeSealed Burner
Center Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner TypeSealed Burner
Left Rear Element Burner Power5000BTU
Number Of Grates2
Right Rear Element Burner Power5000BTU
Cooktop Surface ColorStainless Steel
Center Rear Element Burner Power7350BTU
Left Front Element Burner Power17000BTU

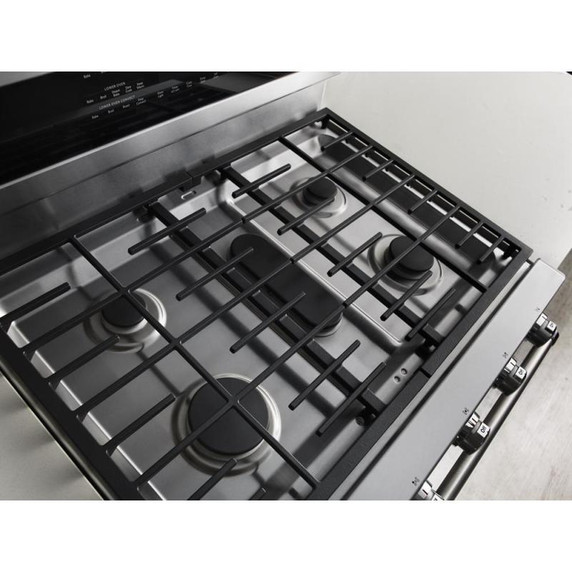

Grate DetailsCast Iron Grates; Continuous; Dishwasher Safe; Matte Finish
Carton Depth30.25"
Carton Height49.5"
Carton Width30.75"

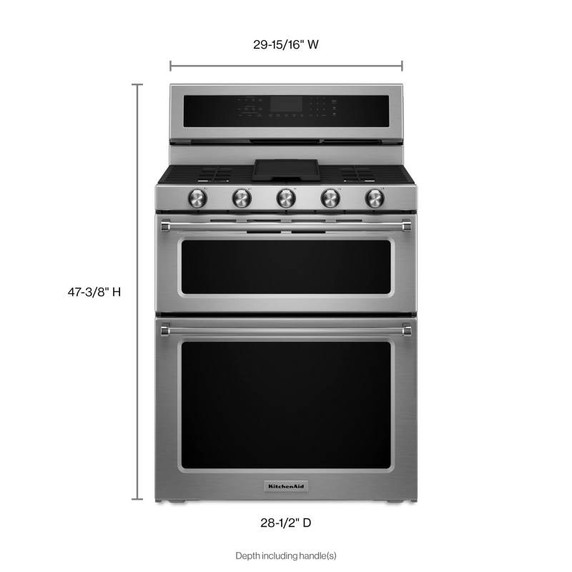

Depth Closed Including Handles28.5"
Depth With Door Open 90 Degree45.0"
Depth28.5"
Gross Weight260.0 lbs.
Height47.38"
Net Weight239.6 lbs.
Width29.94"
Capacity FT3 (cubic feet)6.7
