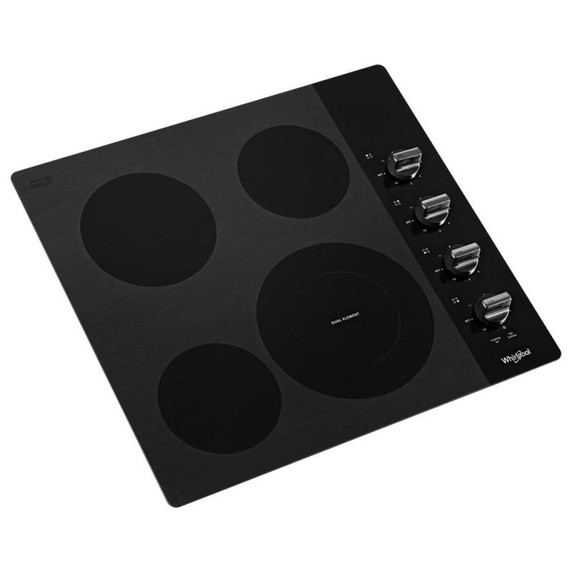

Whirlpool® 24-inch Compact Electric Ceramic Glass Cooktop WCE55US4HB
Specifications
Country Of OriginUSA
Optional AccessoriesW10355051B
Product To Product PairsWVU37UC4FS
Extended Service Plan ParentEW05IW2Y, EW05IW4Y, EW05IW1Y
Electrical
Hz60
Power Cord IncludedYes
Volts240
Amps30
208v CompatibleYes
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Right Front Element Burner TypeDual
Cooktop ConfigurationAll Burners

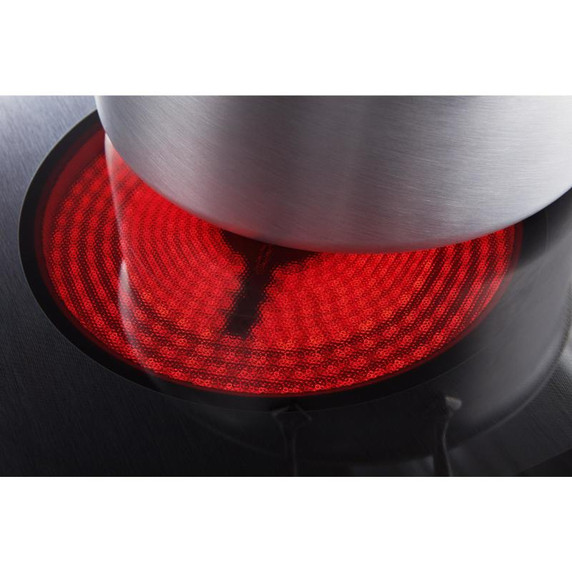

Cooktop Element StyleCeran
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Left Front Element Burner TypeStandard
Left Rear Element Burner Power1800W
Left Rear Element Burner Size8in.
Right Front Element Burner Size10in./6in.
Left Front Element Burner Size6in.
Right Front Element Burner Power2500W
Left Front Element Burner Power1200W
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Configuration and Overview
Fuel TypeElectric
Description
Size In24
Cooktop TypeTraditional
Combinations With OvenWOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0

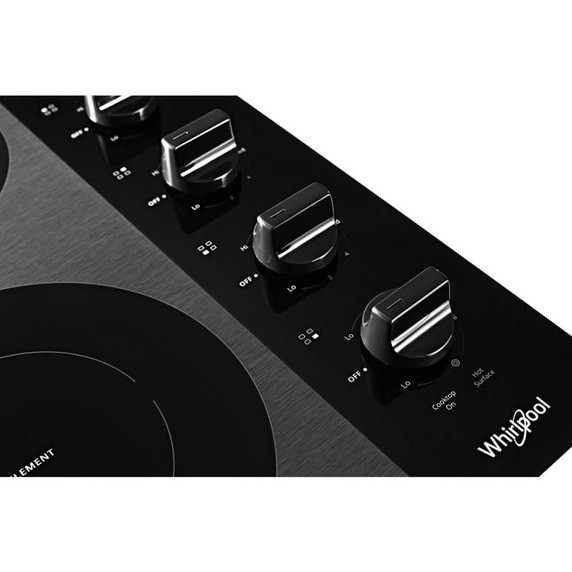

Controls
Control TypeManual
Knob TypeDishwasher Safe
Control LocationSide
Compatibility
Connectivity
Refinements
Whr CooktopADA Compliant

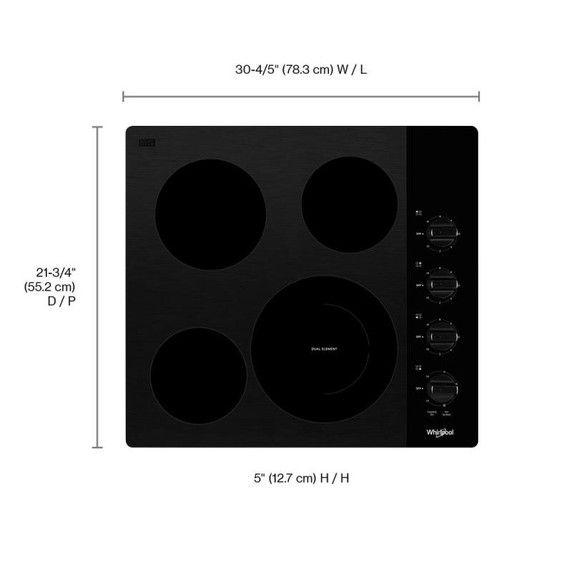

Depth21.75"
Height5.0"
Maximum Height5.0"
Net Weight39.0 lbs.
Width23.81"
Cutout Depth20.38"
Cutout Width21.25"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch27.75
