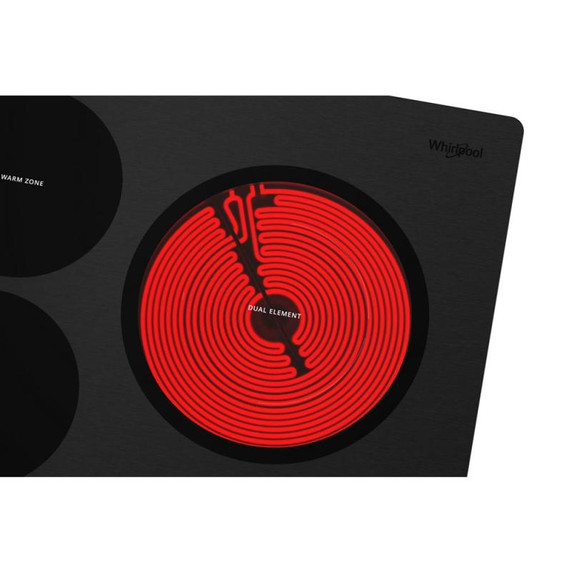

FlexHeat™ Dual Radiant ElementGet two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
Tap Touch ControlsClean the controls as easily as you use them.
Control Lock ModeDisable the control panel to avoid unintended use.
Easy-Wipe Ceramic Glass CooktopWiping up spills is simple with the easy-to-clean cooktop.
Warm Zone ElementKeep food warm while you're finishing the rest of the meal using this low-powered element.
Kitchen TimerKeep track of cook times with an easy-to-clean Kitchen Timer that’s integrated into the Tap Touch Controls.
5-Element CooktopProvides five independent cooking surface areas.
30 & 40 Amp InstallationProperly install with either a 30 or 40 amp hookup, so there's no need to rewire.
Hot Surface Indicator LightSee when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
Wall Oven CompatibleInstall this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility
8" Extra ElementCook small dishes like sides and sauces on the 8" extra element.
6" Extra ElementCook small dishes like sides and sauces on the 6" extra element.
ADA compliantThis cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Control TypeManual
Control LocationFront
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
Fuel TypeElectric
Country Of OriginUSA
Extended Service Plan ParentEW05IW4Y, EW05IW1Y, EW05IW2Y
Product To Product PairsUVL5430JSS, UXT4130ADS, WVW73UC0LS, WVU17UC0JS, WVW57UC0FS, WVW53UC0HV, UXT5230BDS, WVW51UC0LS, WVU17UC0JW, WVU37UC0FS, WVU57UC0FS, UXT5530AAS, WVW53UC0LS
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Digital DisplayYes
Automatic Pan Size AdjustmentNo
ULYes
ADA CompliantYes
Size In30
Cooktop TypeTraditional
Combinations With OvenWOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
Left Front Element Burner TypeDual
Right Rear Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Center Front Element Burner TypeStandard
Center Rear Element Burner Power100W
Left Rear Element Burner Power1800W
Left Rear Element Burner Size8in.
Center Rear Element Burner Size6in.
Center Rear Element Burner TypeStandard
Right Rear Element Burner Power3000W/1900W
Left Front Element Burner Power3000W/1900W
Left Front Element Burner Size10in./6in.
Right Rear Element Burner Size10in./6in.
Center Front Element Burner Power1200W
Center Front Element Burner Size6in.

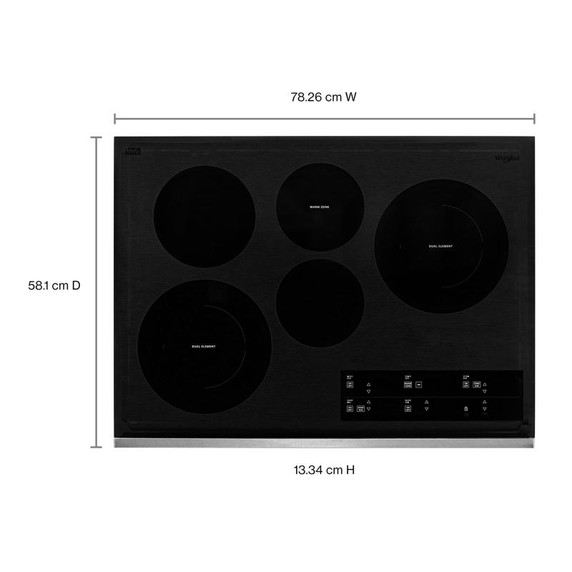

Depth22.81"
Height5.25"
Net Weight41.0 lbs.
Width30.81"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch35.0
