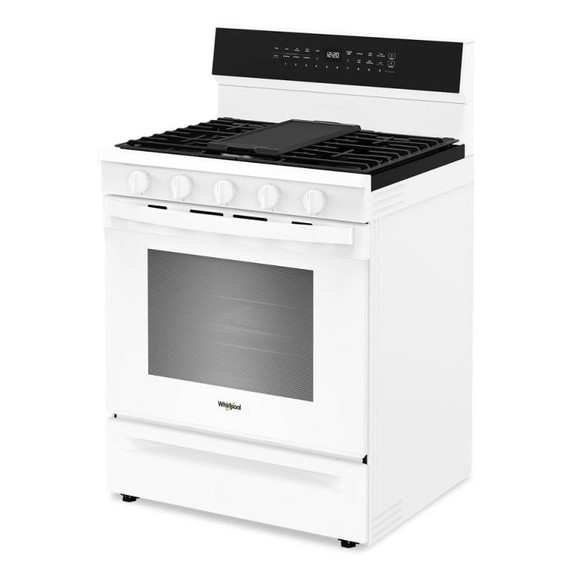

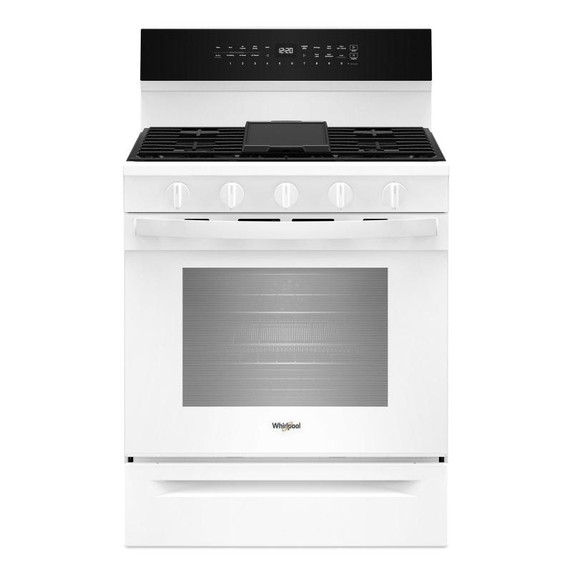

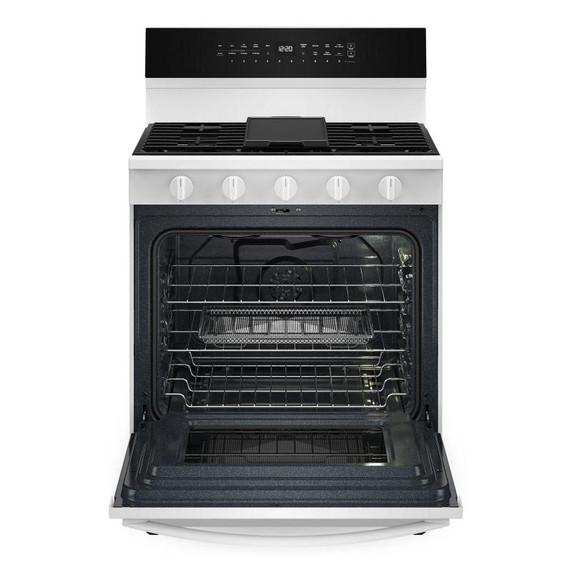

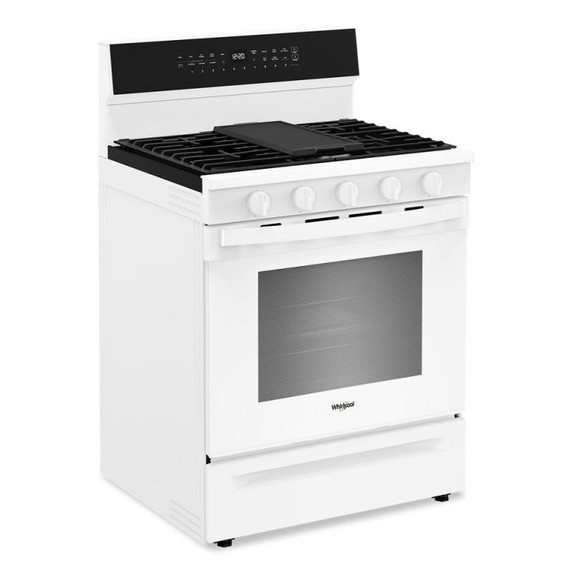

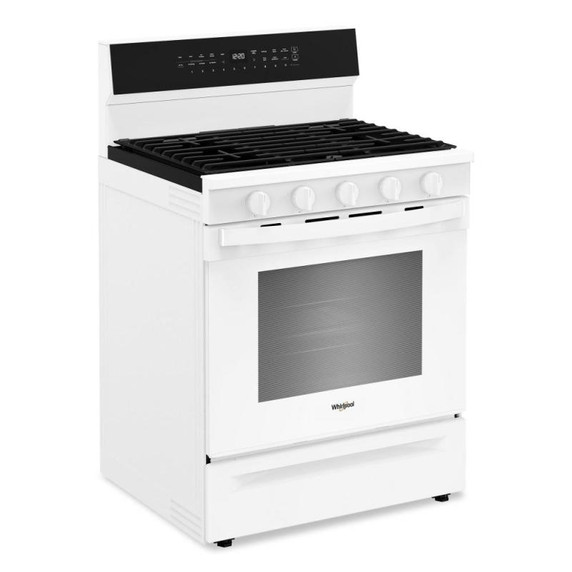

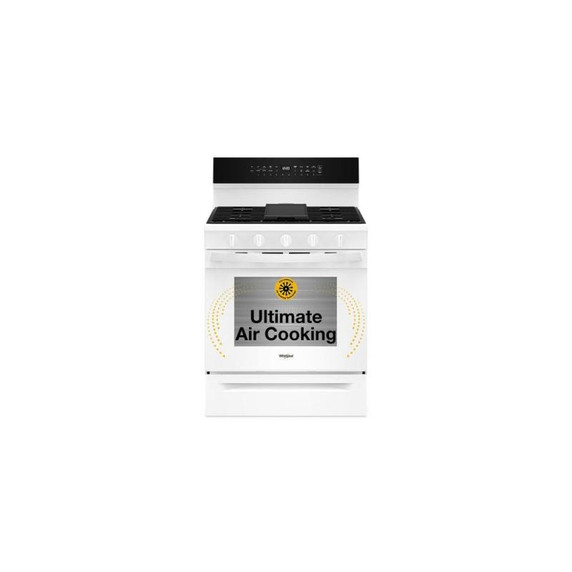

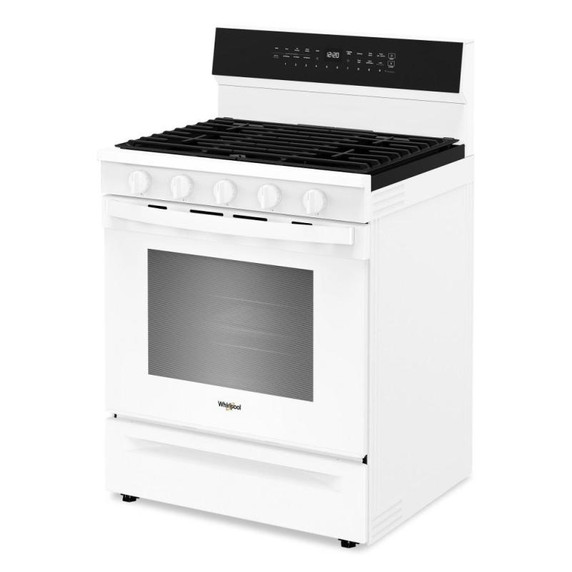

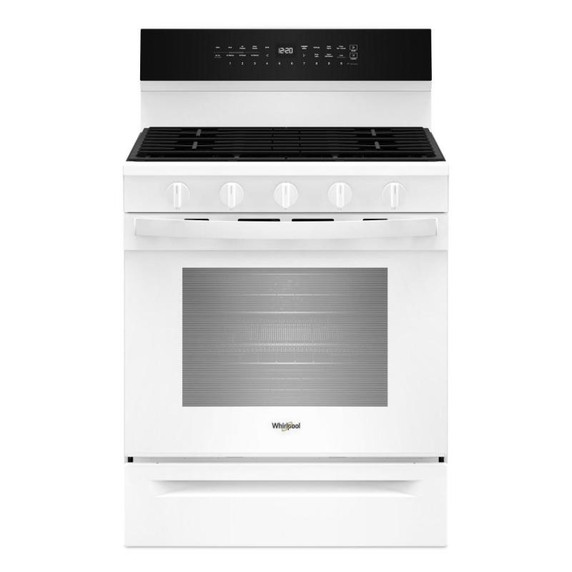

Whirlpool® 30-inch Smart Gas Range with Air Cooking Technology, Steam/Self Cleaning, Rapid Preheat 5.3 CuFt Capacity WFGS7530RW
Whirlpool
Whirlpool® 30-inch Smart Gas Range with Air Cooking Technology, Steam/Self Cleaning, Rapid Preheat 5.3 CuFt Capacity WFGS7530RW
Specifications
Country Of OriginUSA
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Dishwasher SafeNo
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesUVL5430JSS, WVU37UC0FS, WVU17UC0JW, UXT5530AAS, WVU57UC0FS, WVW73UC0LS, WVU17UC0JS, WVW51UC0LS, WVW53UC0HV, WVW57UC0FS, WVW53UC0LS, W11123246, 4396096RB
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Watts1
Certifications
ULYes
ADA CompliantNo
CULYes
Star K CertifiedKosher Consumer Friendly
Exterior
Handle MaterialMetal
Door RemovableYes
Drawer TypeStorage Drawer
Handle ColorWhite
Handle TypeReach-Through Handle
Controls

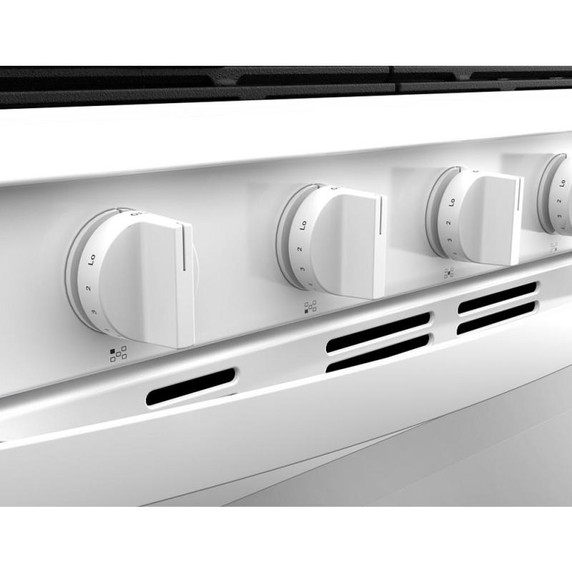

Knob TypeWeighted
Knob ColorWhite

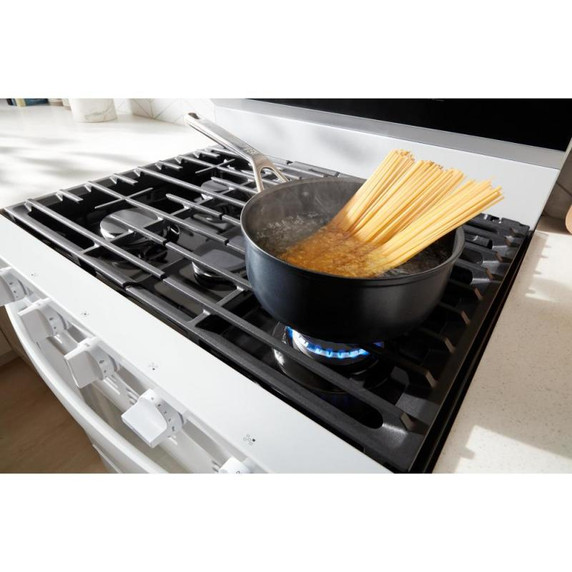

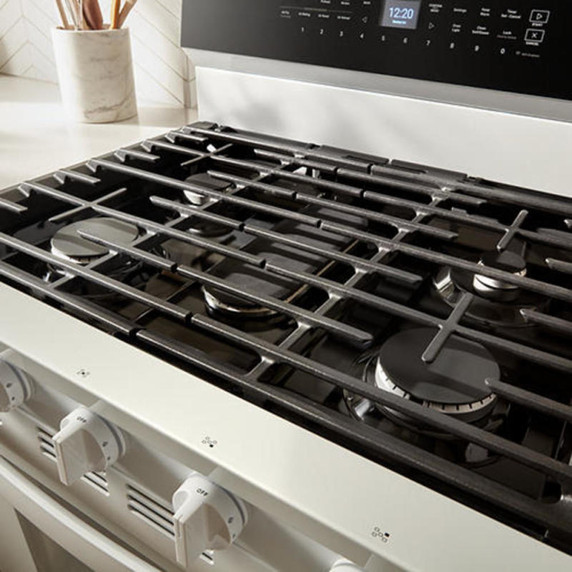

Cooktop Details

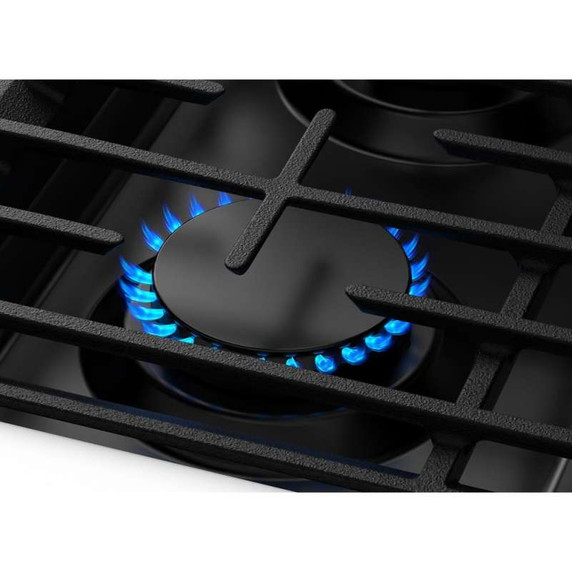

Cooktop Element StyleSealed Burners
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Left Front Element Burner TypeSealed Burner
Number Of Cooking Element Burners5
Center Front Element Burner TypeStandard
Right Front Element Burner TypeSealed Burner
Cooktop Control LocationBackguard
Auto Re IgnitionNo
Number Of Grates2
Left Front Element Burner Power18000BTU
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Ignition TypeDirect Spark Ignition
Left Rear Element Burner Power10000BTU
Center Front Element Burner Power12000BTU
Right Front Element Burner Power18000BTU

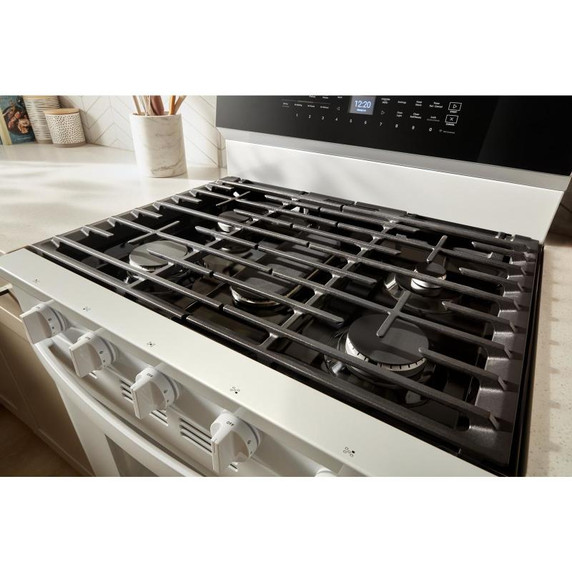

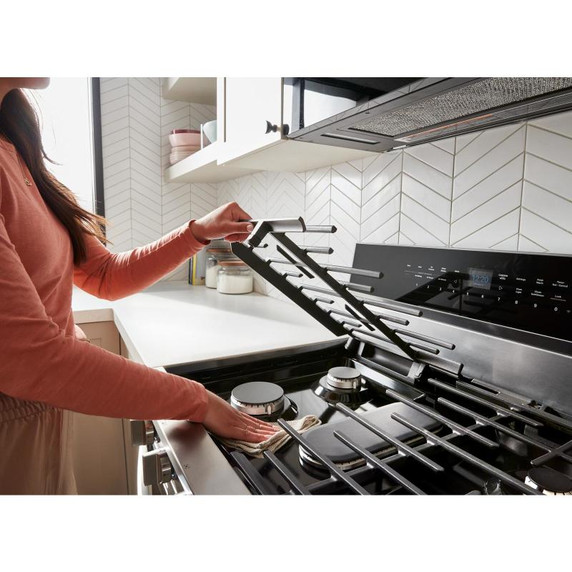

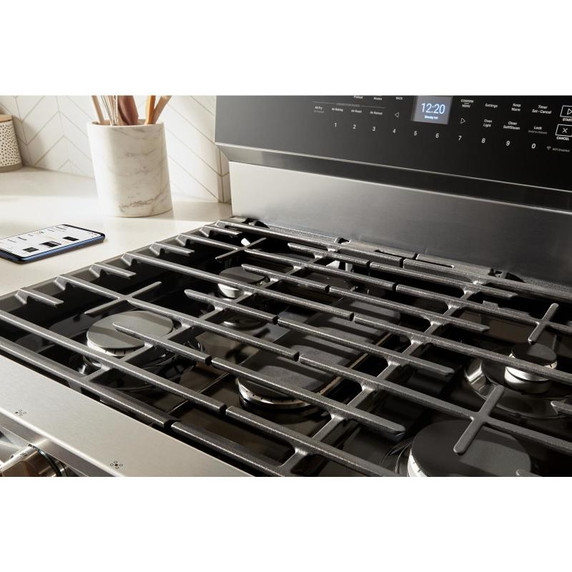

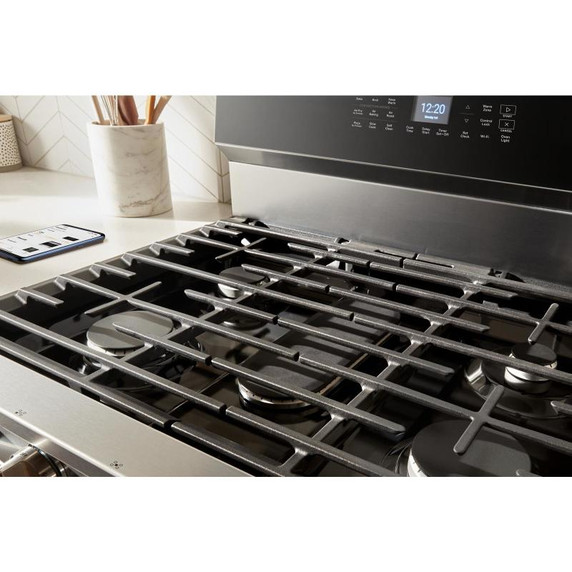

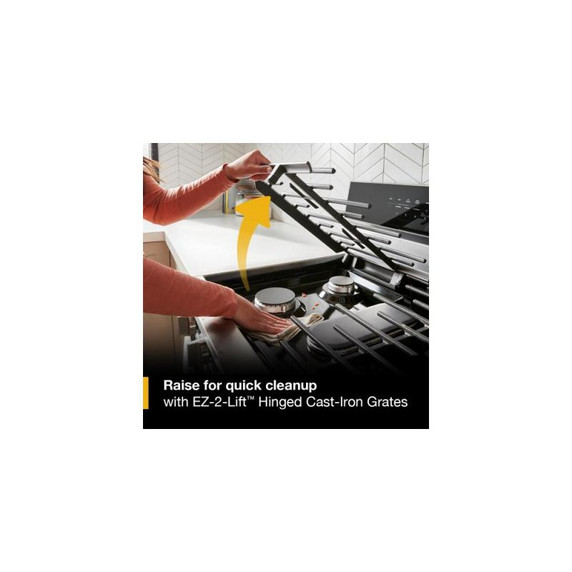

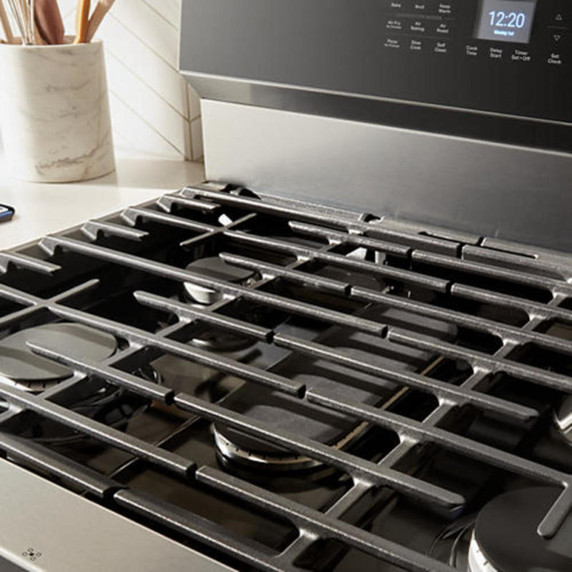

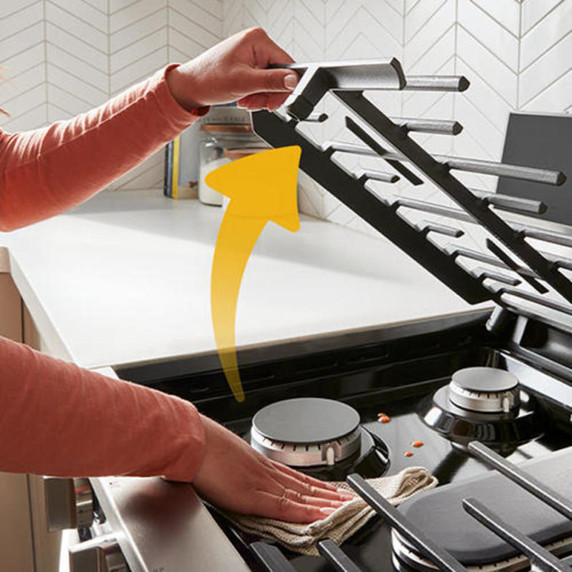

Grate DetailsContinuous with Hinge; Matte Finish; Porcelain Coated Steel Grates
Features

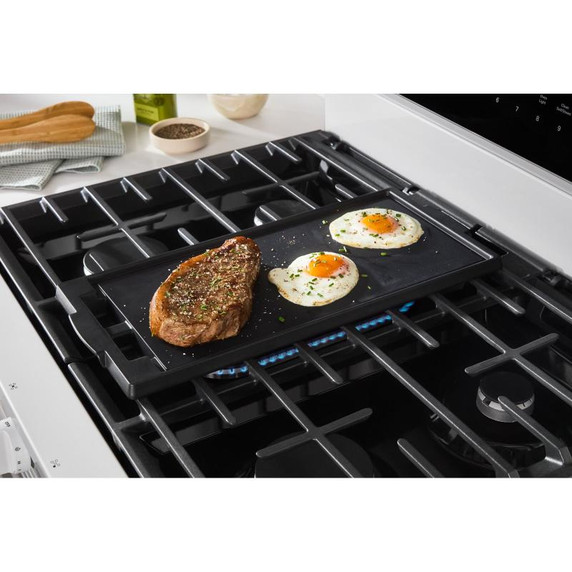

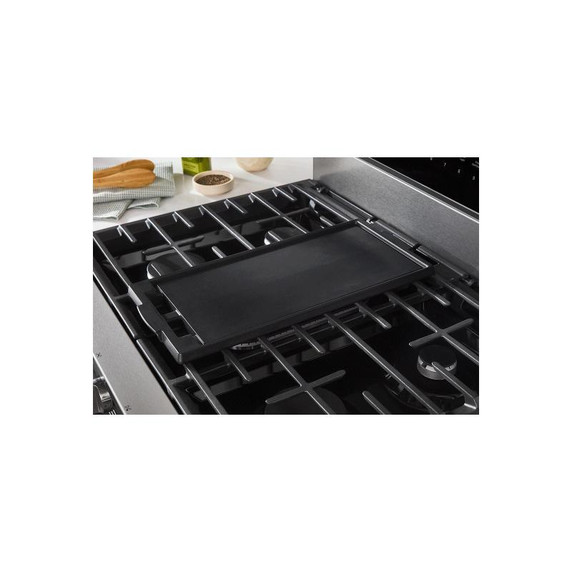

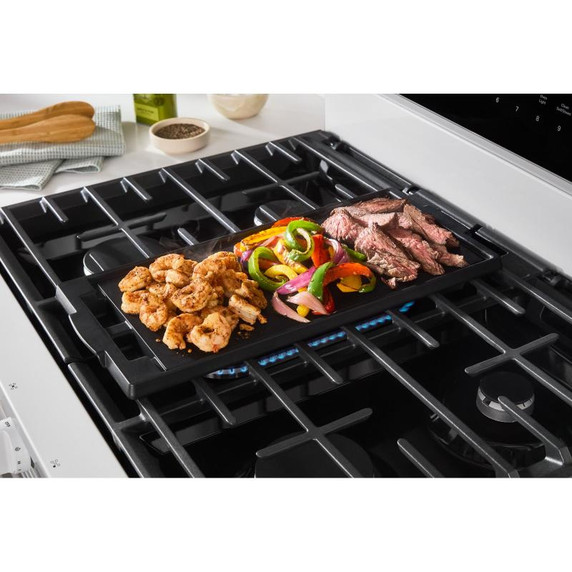

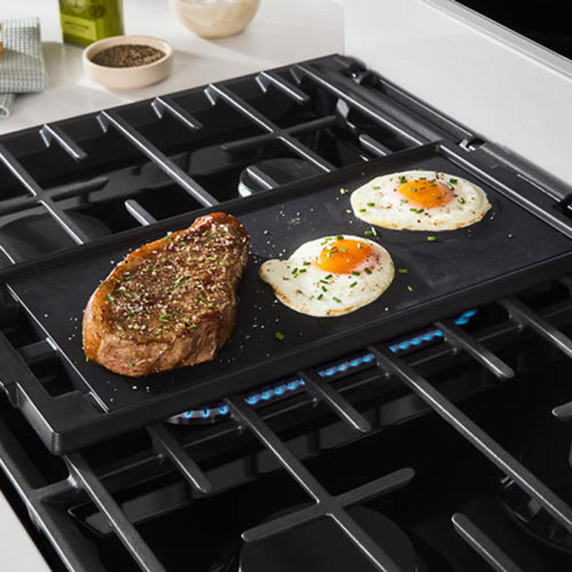

GriddleYes
Hot Surface Indicator LightNo
LP ConvertibleYes
Natural Gas ConvertibleYes
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Total Gas Btus Oven S16,500
Total Gas Btus Cooktop63,000
Configuration
Range ConfigurationFreestanding
Details
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Light Switch LocationOven Control
Interior ColorGrey

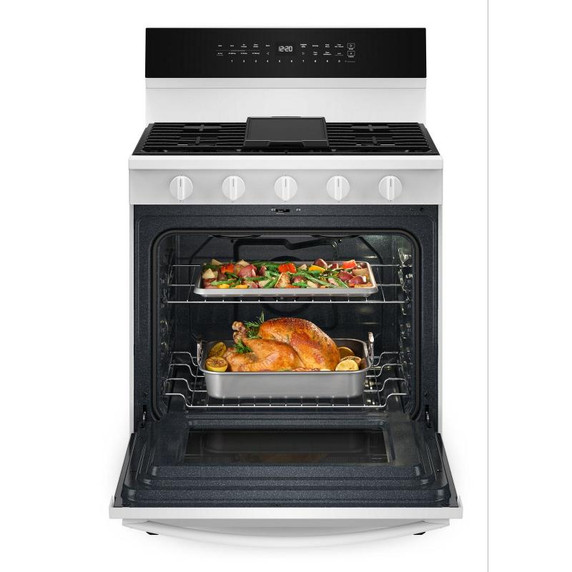

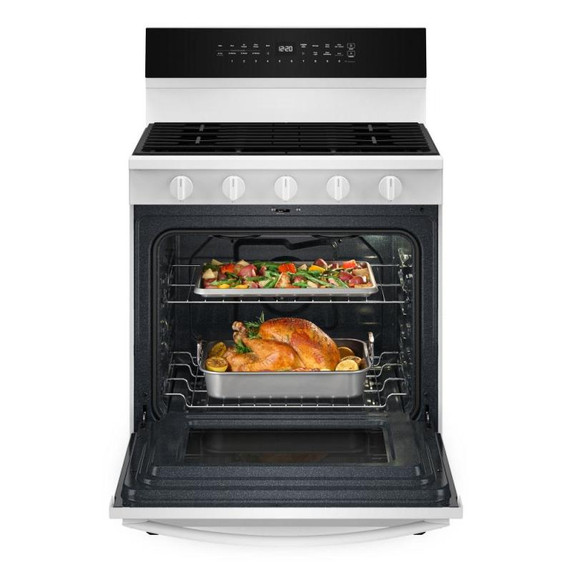

Number Of Oven Racks2
Oven Cleaning TypeSteam Clean
Oven Cooking SystemThermal
Oven Interior Depth In Inches19.0
Number Of Rack Guides5
Number Of Oven Lights1

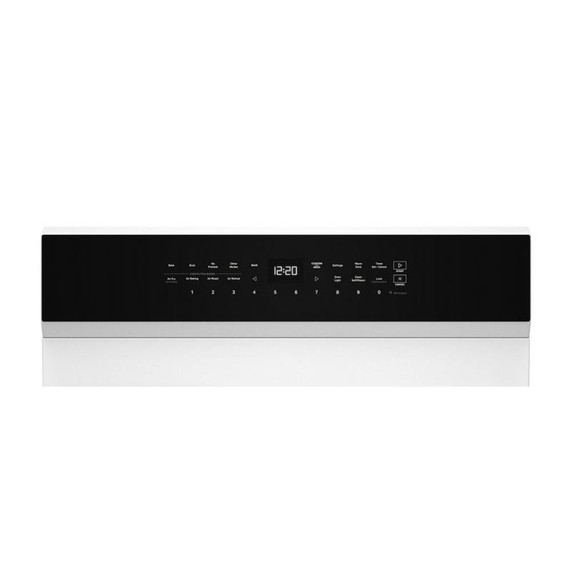

Oven Control TypeTap Touch
Oven Light TypeIncandescent
Broiler LocationTop Center
Oven Control LocationRear Control
Broiler Element Power1300W
Convection Element TypeTrue
Convection FunctionsBake; Broil
Oven Interior Width In Inches24.25
Oven Rack Type2 Standard
Oven Control Knob TypeN/A
Oven Ignition TypeSpark
Configuration and Overview
Fuel TypeGas
Description
Range TypeFreestanding
Compatibility
Works WithAmazon Alexa; Android; Google Assistant; Nest; iOS
ConnectivityApp; Bluetooth; Remote Access; Voice Controlled; WiFi
Carton Depth29.0"
Carton Height49.0"
Carton Width32.0"
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles28.0"
Depth With Door Open 90 Degree46.69"

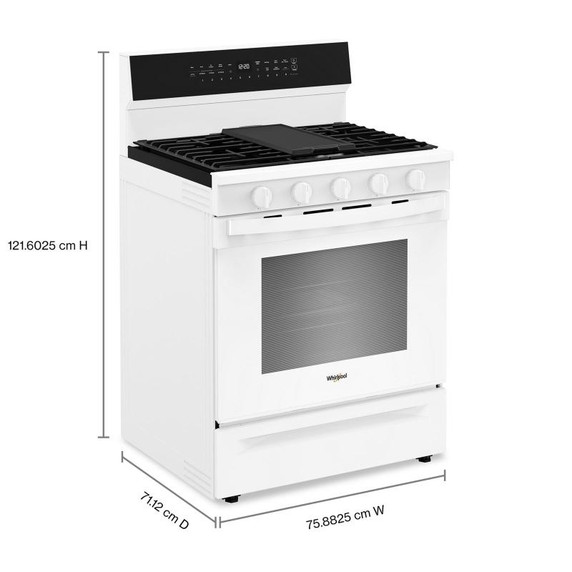

Depth28.0"
Gross Weight213.0 lbs.
Height47.88"
Maximum Height47.88"
Minimum Height46.5"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Capacity FT3 (cubic feet)5.0
