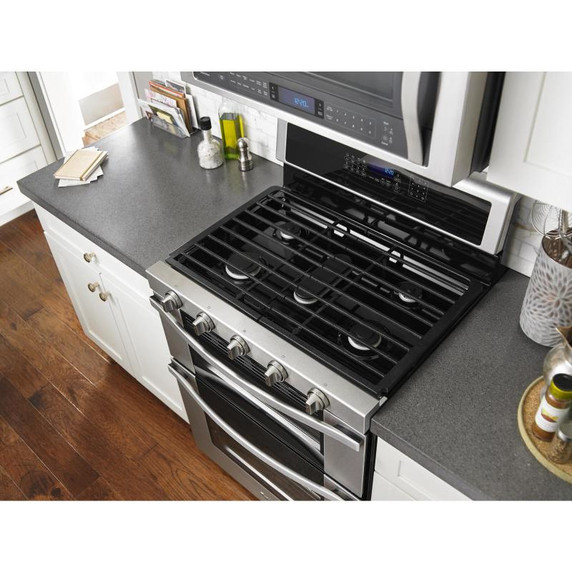

Whirlpool® 6.0 Cu. Ft. Gas Double Oven Range with Center Oval Burner WGG745S0FS
Whirlpool
Whirlpool® 6.0 Cu. Ft. Gas Double Oven Range with Center Oval Burner WGG745S0FS
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Optional AccessoriesW11123246
Extended Service Plan ParentEW08IW2Y, EW08IW4Y, EW08IW1Y
Product To Product PairsWVU57UC0FS, UVL5430JSS, WVW51UC0LS, UXT5530AAS, WVU17UC0JS, WVW53UC0LS, WVW73UC0LS, WVW57UC0FS, WVW53UC0HV, WVU17UC0JW, WVU37UC0FS
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedNo
Certifications
ULYes
ADA CompliantNo
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes

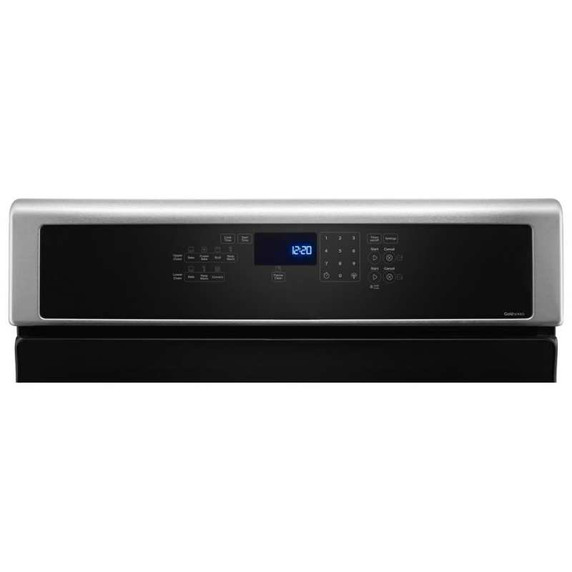

Controls
Knob TypeWeighted
Electronic Display TypeDigital
Knob ColorBlack Stainless

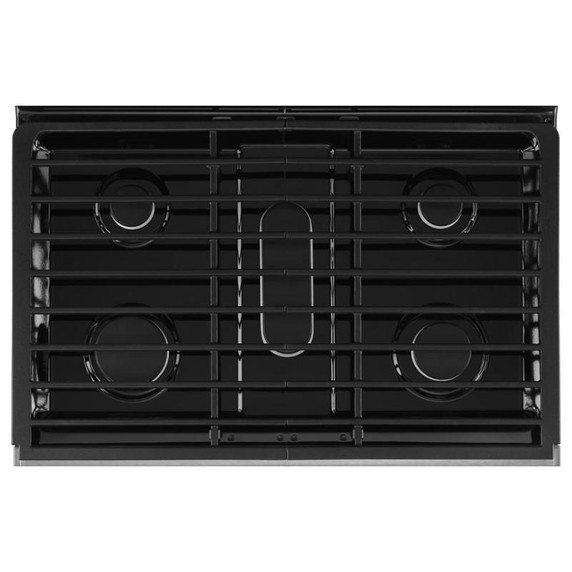

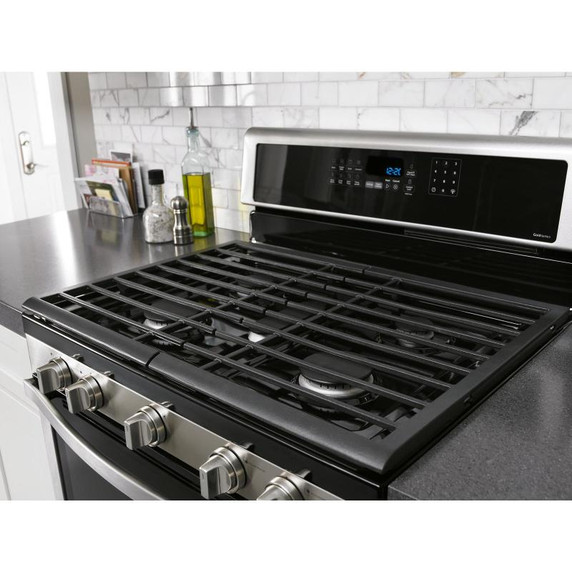

Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Number Of Cooking Element Burners5
Right Front Element Burner Power10000BTU
Center Rear Element Burner TypeSealed Burner
Left Rear Element Burner Power5000BTU
Number Of Grates2
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Cooktop Surface ColorStainless Steel
Center Rear Element Burner Power7350BTU
Left Front Element Burner Power16000BTU
Ignition TypeÉlectroniques

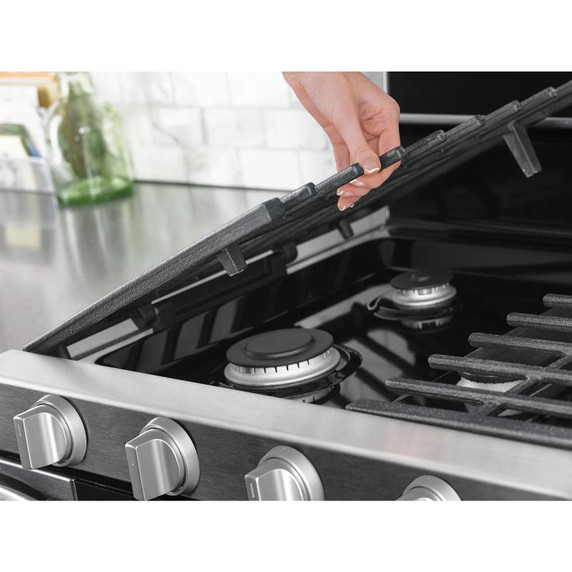

Grate DetailsDishwasher Safe; Hinged; Matte Finish; Porcelain Coated Cast Grates
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Automatic Convection Conversion Temperature AdjustYes
GriddleN/A
Power Outage CompatibleNo
Heating Element On Indicator LightNo
Configuration
Range ConfigurationFreestanding

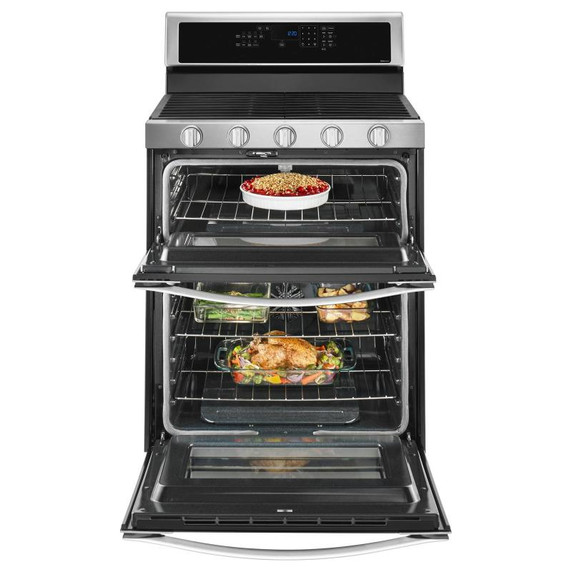

Oven ConfigurationDouble Oven
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Interior ColorGrey
Number Of Oven Racks2
Number Of Rack Guides5
Number Of Oven Lights1
Oven Light TypeIncandescent

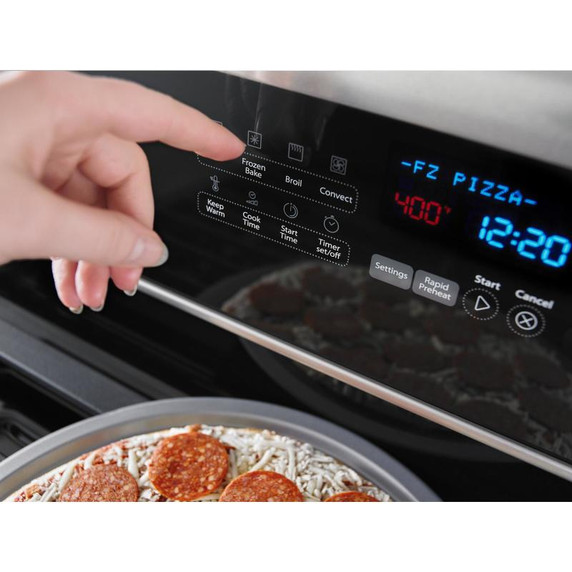

Oven Control TypeElectronic Touch
Oven Cooking SystemThermal Upper-Convection Lower
Oven Control LocationRear Control
Broiler Element Power10000BTU-Upper
Oven Rack TypeStandard

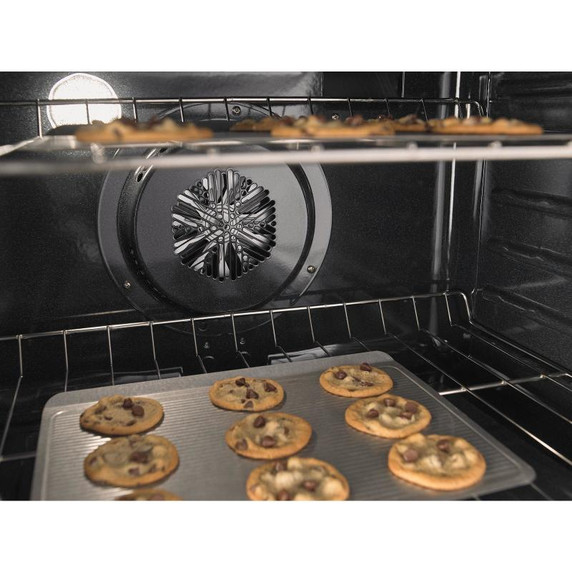

Convection Element TypeTrue
Bake Element Power16000BTU
Convection FunctionsNo
Description
Size In30
Range TypeFreestanding Double Oven
Configuration and Overview
Fuel TypeGas
Refinements

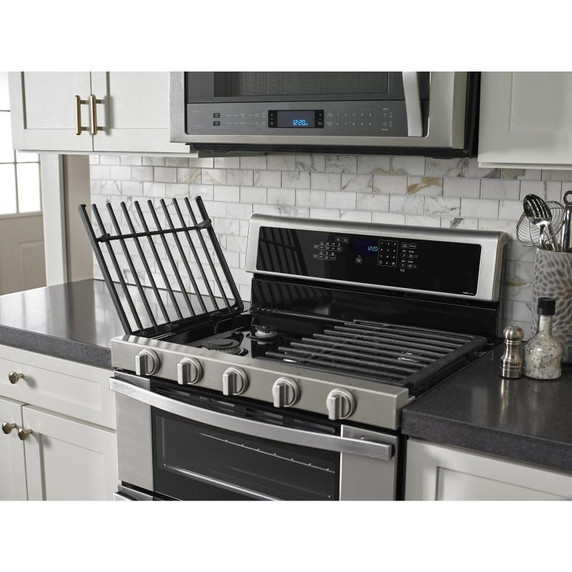

Whr RangeBladed Knob; EZ-2-Lift™ Hinged Grates; Frozen Bake™ Technology; Self-Cleaning; True Convection; Whirlpool Handle
Carton Depth30.25"
Carton Height49.5"
Carton Width30.75"

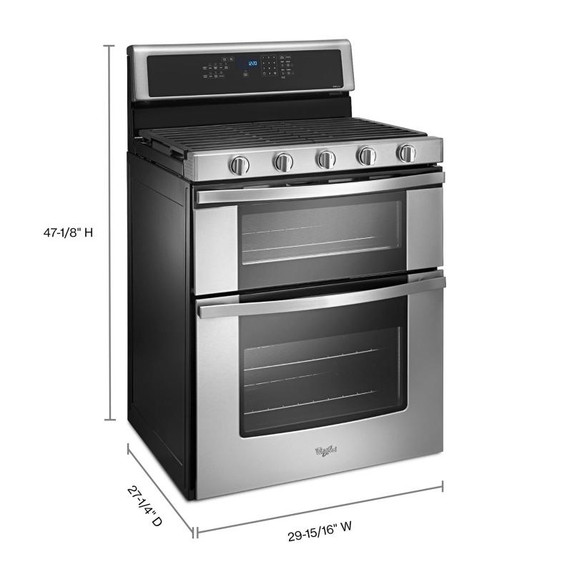

Depth Closed Excluding Handles27.25"
Depth With Door Open 90 Degree46.0"
Gross Weight263.0 lbs.
Height47.13"
Net Weight0.0 lbs.
Width29.94"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.13"
